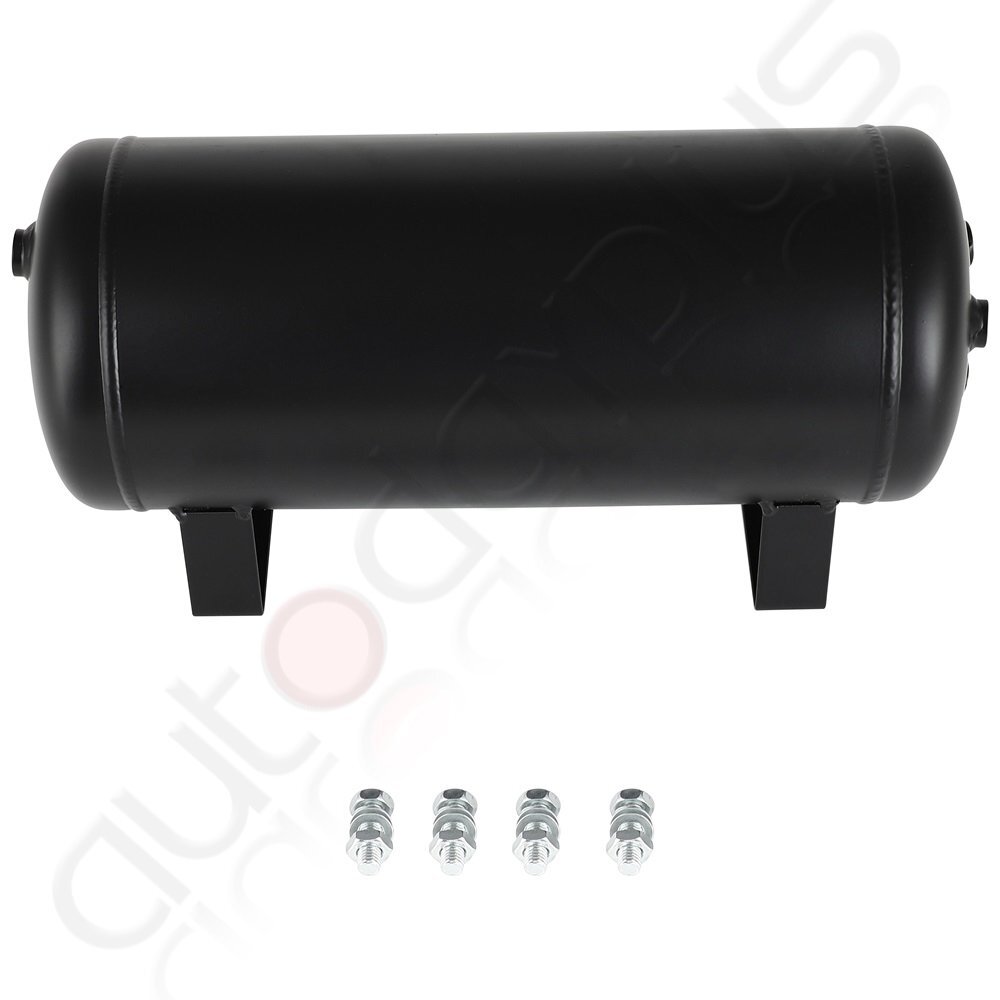

2 Gallon Air Tank 200psi For Train Horn Compressor

Feature:

This 2 gallon air tank comes with 6 1/4" NPT ports, covered with black coating, and can support air pressure up to 200 PSI. It can be used with air horns that require on-board air systems and many other air suspension applications. Made of precision welded steel, and anti-corrosion coating, which is non corrosive and offers maximum protection and durability. The size of the gas tank is 20.9"(L)×5.7"(W)×7.3"(H), which is easy to install. Your best choice.



Included in this kit:

• 1 * 2 Gallon air tank with 6 ports of 1/4" NPT
• mounting hardware



Specification:

2 Gallon Air Tank 200PSI For Train Horn Compressor For Air Ride Suspension Light

Feature:

This 2 gallon air tank comes with 6 1/4" NPT ports, covered with black coating, and can support air pressure up to 200 PSI. It can be used with air horns that require on-board air systems and many other air suspension applications. Made of precision welded steel, and anti-corrosion coating, which is non corrosive and offers maximum protection and durability. The size of the gas tank is 20.9"(L)×5.7"(W)×7.3"(H), which is easy to install. Your best choice.



Included in this kit:

• 1 * 2 Gallon air tank with 6 ports of 1/4" NPT
• mounting hardware



Specification:

• Type: 200PSI black air Tank
• Port: 6 Ports
• Thread: 1/4" NPT
• Working Voltage:12 Volt
• Package Size(inch):17.5*8.9*7.4
• Tank Size: 15.3"(L)×5.7"(W)×7.3"(H)
• Color:black
• Tank Capacity:8L(2.0GAL)
• Material:Metal
• Max Working Pressure:200



SAFETY INSTRUCTIONS:

• Install all fittings and accessories in the tank before pressurizing the tank.
• Before assembly, use thread sealant on all fitting's threads, then use a wrench to tighten each part. IMPORTANT:
• Do not over tighten.
• Tank must be drain frequently. Failure to remove condensation will cause the tank to rust sooner.
• We recommend always to install a drain and safety valves in the tank.
• Always depressurize the tank before servicing or adding accessories.
• Do not use this tank as a breathing device.
• Be sure to pump nothing other than atmospheric air.
• It is important to determine the maximum air pressure for any tool or attachment before using it.
• Make sure your battery ground is detached before you begin the installation.
• Employ equipment for eye protection during drilling operations?.



Installation Tips:

Find a convenient mounting location in your vehicle for the air tank. Ensure ports are reachable before drilling any holes.

Mark the location of holes using the mounting bracket of the air tank as a template, and then drill to size. Using mounting hardware provided, secure the air tank.

IMPORTANT: Do not mount on a flexible material. The installation location of your tank’s accessories depends on your air system’s configuration.

The package only contains an air tank and installation kits. The installation methods of other parts such as pressure switch and compressor can refer to the original vehicle installation method or professional installation.



SOLUTIONS TO COMMON ISSUES:

Issue: Loss of pressure of tank.
Solution 1: Tighten drain cock.
Solution 2: Examine air and check valves and replace if damaged or leaking.
Solution 3: Use soap and water solution on air connections and tank, and tighten connections or repair leaks where needed.

Issue: Air horn is inaudible
Solution 1: Check all switches to make sure they are ON.
Solution 2: Assure air tank is pressurized.
Solution 3: Check the fuse; if blown, disconnect compressor from power and replace the fuse.
Solution 4: Examine electrical connection for damage or corrosion, secure electrical connections.

Issue: Excessive moisture in horn or safety valve (if installed).
Solution 1: Depressurize and drain the tank.
Solution 2: Relocate the compressor to a drier location

Item SpecificsBrand :autodaypluManufacturer Part Number :AP169897S01Type :HornPart Type :Air TankHorn Type :High Pressure AirMaterial :MetalFitment Type :Direct ReplacementColor :BlackManufacturer Warranty :1 YearPlacement on Vehicle :Left Right Front Rear LowerPackage Size(inch) :17.5*8.9*7.4Package Weight :10LBTank Capacity :8L(2.0GAL)
